The INSLIFT EV280Li full-electric aerial work platform sets a new industry benchmark with its 28-meter working height and exceptional 350kg load capacity, delivering eco-friendly efficiency without compromise.
Engineered for Demanding Performance

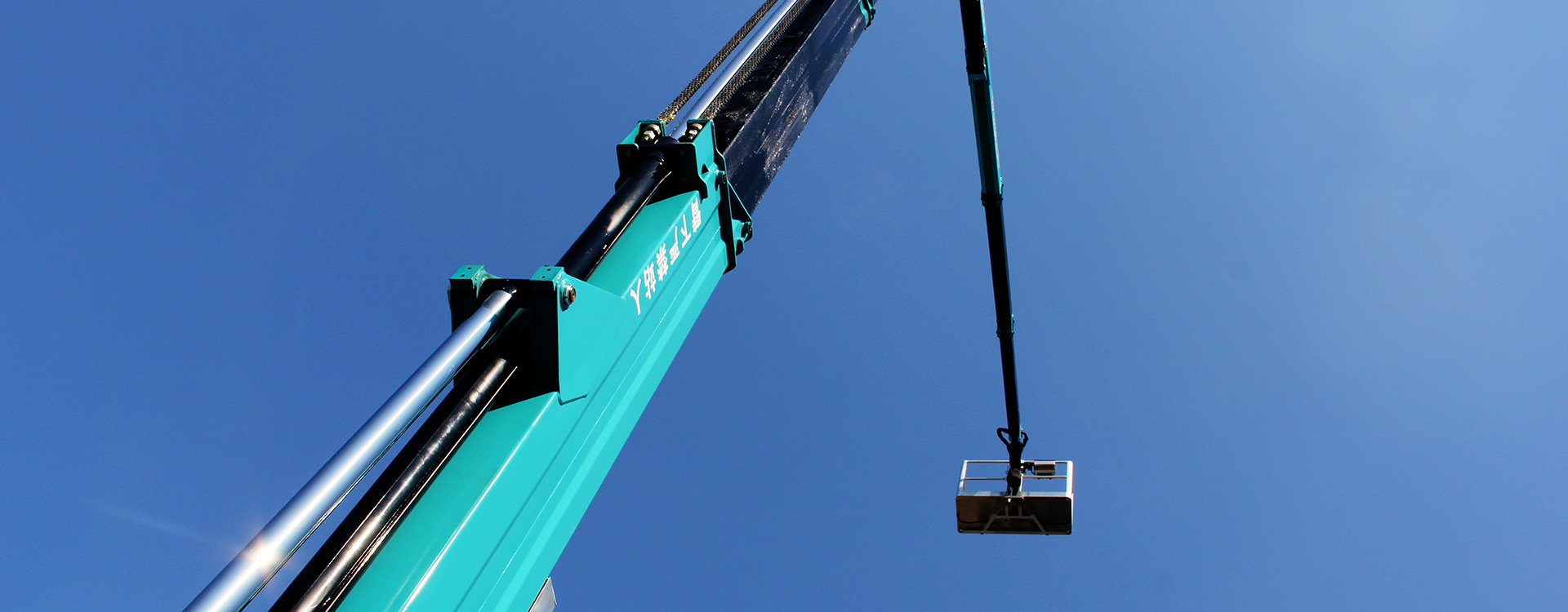

Featuring heavy-duty construction and a 360° continuous-rotation boom system built with military-grade high-strength steel, it ensures unwavering stability and safety in the toughest conditions.
Zero-Emission Powerhouse
Powered by a Chongqing Isuzu lithium-ion battery chassis, it operates with near-silent zero emissions – ideal for environmentally sensitive environments like botanical gardens, airports, port facilities, and urban property management.
Customizable Versatility
Multiple chassis configuration options provide rental companies with cross-industry deployment flexibility, maximizing asset ROI through reduced downtime.
Proven Reliability
With a field-tested design refined through thousands of operational cycles, it combines precise power control with unmatched durability – the ultimate partner for large-scale infrastructure projects and smart city services.
|
Model |
EV280Li |
|
Working height, max. |
28 m |
|
Platform height, max. |
26 m |
|
Horizontal outreach, max. |
13.6 m |
|
Up and over clearance, max. |
15.8 m |
|
Platform capacity, max. |
350 kg |
|
Platform rotatable |
±80° |
|
Platform measurements（L*W*H） |
1.8m * 0.7m * 1.1m |
|
Turntable rotation, max. |
360°（continuous） |
|
Outrigger |
H |
|
Outrigger width-adjustable |
2.0-米 |
|
Drive speed |
0-100 km/h |
|
Standard power |
Isuzu lithium-ion battery chassis |
|
Combustion engine |
QL1103BEVEYMAY |
|
Wind |
12.5m/s |
|
Total weight |
8350 kg |
|
Overall dimensions without platform (L*W*H) |
7870mm×2210mm×2600mm |
